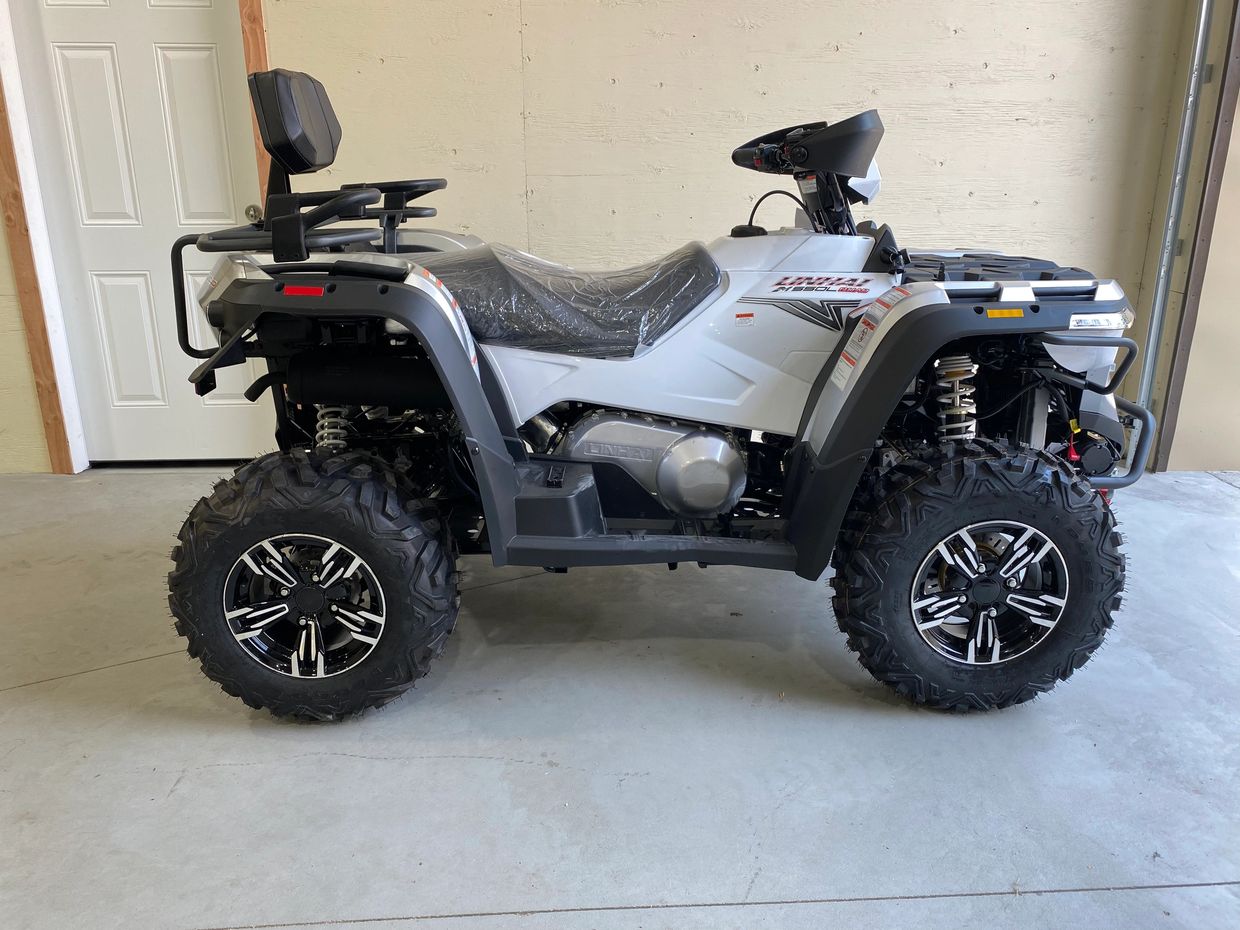

Linhai 550 4x4

MODEL M550L 4x4

Size: 2330×1160×1265mm

Wheel base 1455 mm

Ground clearance 270 mm

Dry weight 384 kg

Loading capacity 129 kg

Fuel Tank Capacity 14.5L

Max speed 80 km/h

Front Tire: AT25×8-12

RearTire: AT25×10-12

Front Brake: Hand brake,foot brake Disk Brake

Rear Brake: Hand brake,foot brake Disk Brake

Suspension Front: McPherson independent suspension

Suspension Rear: Twin-A arms independent suspension

Engine type LH188MR-A/LH188MR

Model Singe cylinder, 4 stroke, SOHC, liquid cooled

Cylinder dimension 493 cc

Bore and Stroke 87.5 × 82 mm

Rated power24 /6500 (kw/r/min)

Max torque38.8 Nm/5500((Nm/r/min)

Compression Ratio10.2:1

Fuel system C.D.I./EFI

Electric start

TransmissionAutomatic L-H-N-R

  $ 10,299

*Taxes not included
